The FlexxiFloat^™ crop lifter series have a spring-pivot which allows the lifter to follow the fluctuations of the ground, making it ideal for uneven ground conditions.  The FlexxiFloat^™ system is available with three rail options: the standard rail, the high-pivot rail, and the high-pivot MD-2 rail.  The standard rail is generally used with a rigid header, while the high-pivot rail is used with a flex header, with the exception of a few specific makes and models of header and feeder house combinations. The high-pivot MD-2 rail fits the MacDon® #286315 long guard.

The FlexxiFloat™ 250 is used on taller, heavier foliage crops. Made of sturdy cast metal, this lifter is capable of standing up to the most challenging ground conditions.

Benefits

Usage

Crop Type –some pulses, cereals, rice, oilseed, forage, hemp and other specialty crops

General recommendation is one lifter per foot across the header for solid-seeded crops. For maximum efficiency, lifter spacing may be customized to fit various row crop configurations.  Lifter spacing depends on row spacing, and whether entering the field with the rows, or on an angle.

** Some or all of these components are made of steel, therefore care must be exercised by the combine operator to minimize possible damage to the header/ combine.**

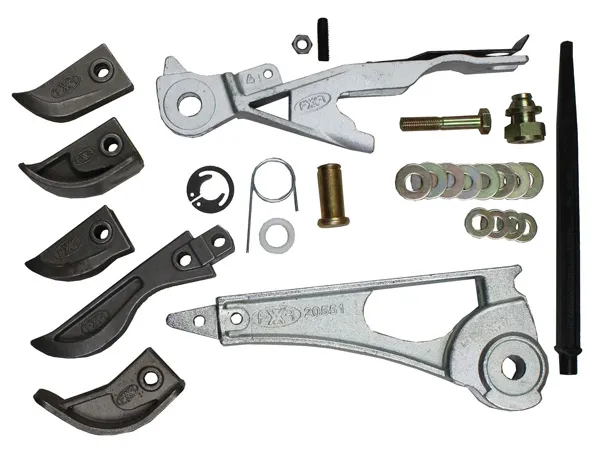

73250 FlexxiFloat™ 250 (Standard Rail)

• Quick attach/detach technology using the same QD™ nut  assembly as all other Flexxifinger® lifters
• Adjustment screw used to limit the downward travel of the lifting point
• QD™ Nut Assembly included**
• Can be paired with any of the 5 available shoes, sold separately

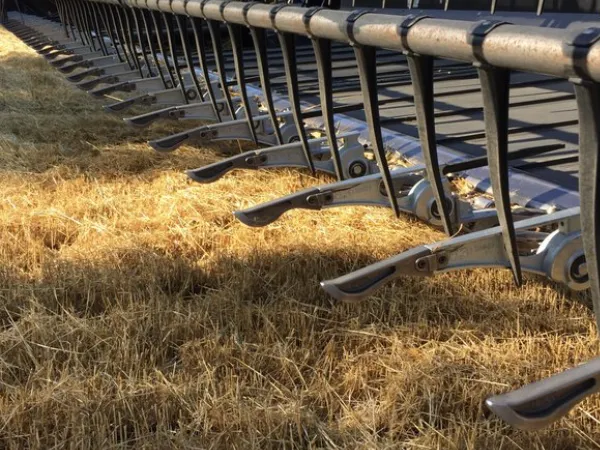

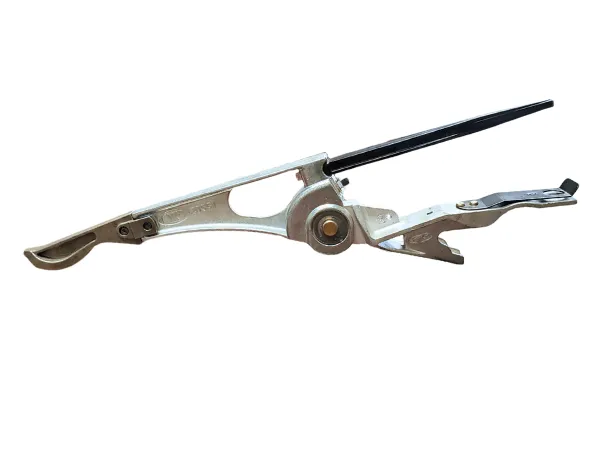

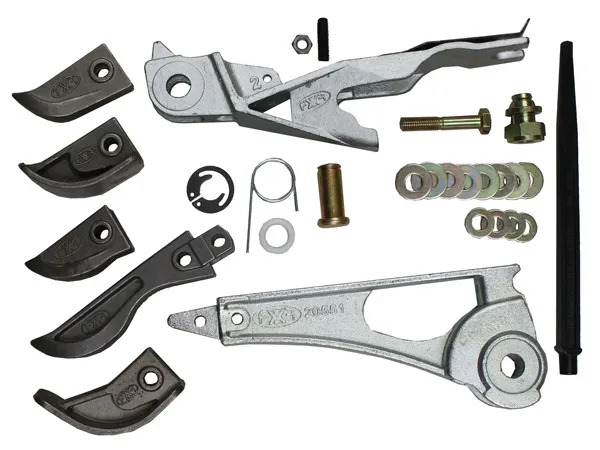

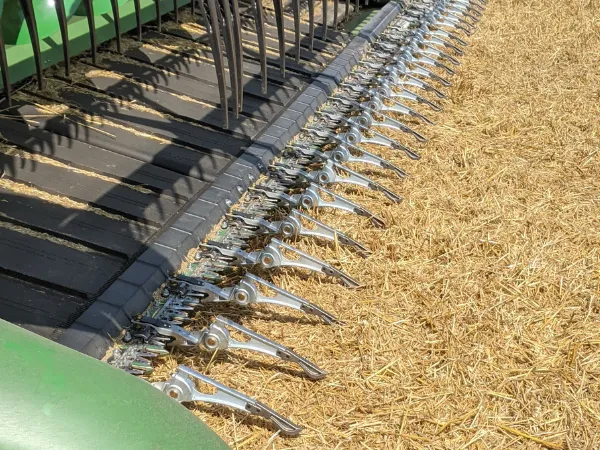

74250 FlexxiFloat™ 250 (High-Pivot Rail)

• The spring tensioned pivot point is mounted higher on the rail. This allows cutting with the header closer to the ground, as with a flex header.
• Quick attach/detach technology using the same QD™ nut  assembly as all other Flexxifinger® lifters
• Adjustment screw used to limit the downward travel of the lifting point
• QD™ Nut Assembly included**
• Can be paired with any of the 5 available shoes, sold separately

74250-MD-2 FlexxiFloat™ 250 (High-Pivot MD-2 Rail)

• The spring tensioned pivot point is mounted higher on the rail. This allows cutting with the header closer to the ground. To be used with MacDon® #286315 long guard
• Quick attach/detach technology using the same QD™ nut  assembly as all other Flexxifinger® lifters
• Adjustment screw used to limit the downward travel of the lifting point
• QD™ Nut Assembly included**
• Can be paired with any of the 5 available shoes, sold separately

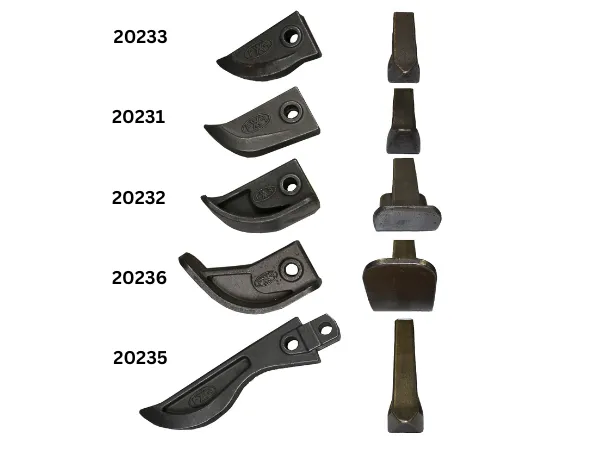

Compatible Steel Shoes:

20231     All-purpose Shoe

• Fits the FlexxiFloat™ 200 and 250
• Performs well in most conditions and most crops
• Not recommended for use in sandy soils
• Roll pin included

20232    Floatation Shoe

• Fits the FlexxiFloat™ 200 and 250
• Better floatation in light sandy soil
• With adjustment can perform well in cereals and peas
• Not recommended for lentils or beans
• Roll pin included

20233    Small Seed Shoe

• Fits the FlexxiFloat™ 200 and 250
• Capable of harvesting pulses or small seed crops
• When paired with the 200 arm, provides the shortest time from the lifter tip entering the crop to the crop being delivered into the header
• Roll pin included

20235      Long Shoe

• Fits the FlexxiFloat™ 200 and 250
• Recommended for hail damaged or sawfly damaged cereals, milo or grain sorghum
• With proper adjustment will also perform well in pulse crops
• Leaves a taller stubble
• 2 Roll pins included

20236 FlexxiFloat™  Heavy Shoe

• Fits the FlexxiFloat™ 200 and 250
• Rides up and over obstacles easily
• Performs well in wet fields with heavy foliage crops
• Travels through tough spots like sprayer tracks, irrigation ruts, drainage ditches and terraces
• Roll pin included

**Additional carriage bolt 32310, 32312 or 32314 may be required for specific model headers.  Please contact our Product Support team for more details.

Installation Instructions – FlexxiFloat™ 250 Crop Lifter (English)
