Flexxifinger® Quicker Picker Model 400 Capacity Calculator

Rated Operating Capacity of the Skid-steer ROClbs
Weight of the factory standard empty Skid-steer bucket Bucketlbs
Horizontal distance between the center of the front axle and the center of the bucket pivot point (see figures below) Ain
Horizontal distance between the center of the bucket pivot point and the center of the bucket (see figures below) Bin
Allowable Payload (900 lbs max)
lbs
Rated Operating Capacity of the Skid-steer ROCkg
Weight of the factory standard empty Skid-steer bucket Bucketkg
Horizontal distance between the center of the front axle and the center of the bucket pivot point (see figures below) Acm
Horizontal distance between the center of the bucket pivot point and the center of the bucket (see figures below) Bcm
Allowable Payload (408 kg max)
kg
Calculated Capacity is too low -- check your measurements.
If your measurements are correct, please do not use the Flexxifinger® Quicker Picker Model 400 with this Skid-Steer because it does not have the required capacity. Personal Injury and/or Equipment Damage could result.

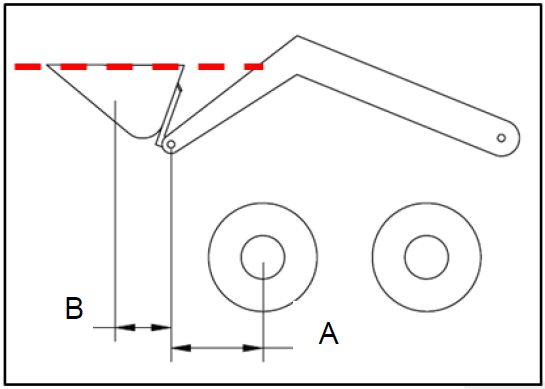

Figure 1 -- Wheeled Skid-Steer

Wheeled

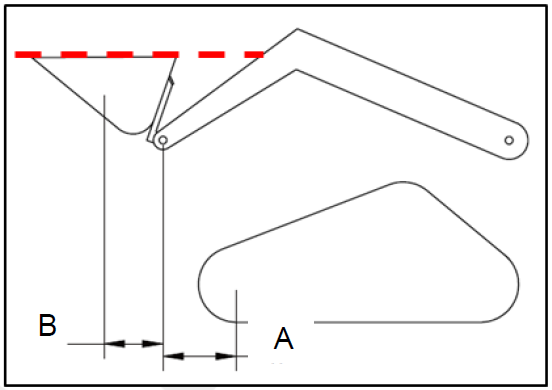

Figure 2 -- Track Skid-Steer

Track
